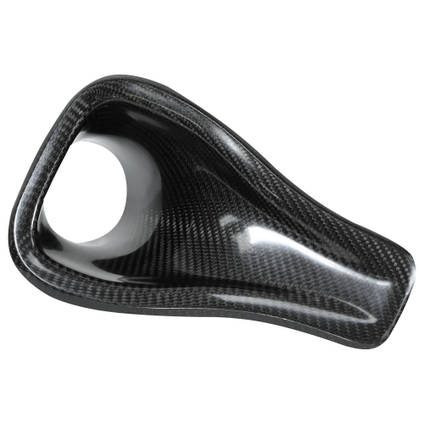

Carbon Fibre NACA Duct 75mm
- CMCFNACA7501
- No reviews
AVAILABILITY:Out of Stock
New stock is on its way. If you order this product, your whole order will be held and then dispatched to you as soon as this product is back in stock.
New stock is on its way. If you order this product, your whole order will be held and then dispatched to you as soon as this product is back in stock.
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
NACA ducts were originally designed by NASA as a very low drag air-intake. When properly installed they allow air to be drawn in through vehicle body panels with minimal disturbance to the air flow. NACA ducts are usually used to provide air for engine, brake and cabin cooling and are commonly installed in bonnets and side panels for this purpose.
The Carbon Mods NACA Duct is designed to the an official NACA specification and is therefore guaranteed to match the performance characteristics of that duct design.
The duct is manufactured from 1mm of 100% pre-preg 2/2 twill 3k carbon fibre making it incredible strong and ultra-light weight. The duct has a high gloss finish on the visible surface.
Aesthetically, the duct displays the characteristic genuine carbon fibre weave on both surfaces that adds the ultimate in performance styling to your vehicle.
Installing the duct
The NACA duct can be installed in a variety of ways depending upon the application.
In all circumstances, the body panel will need to be cut to allow the duct to sit flush on panel surface. Download and print the template below to enable you to cut the correct shape in the body panel.
Download the installation template from the 'Downloads' tab for an accurate fitting drawing.
The duct accepts 75mm silicone duct hoses to deliver effective cooling to wherever it is needed. This larger NACA Duct's aperture makes it a suitable cold air feed to an engine induction system.

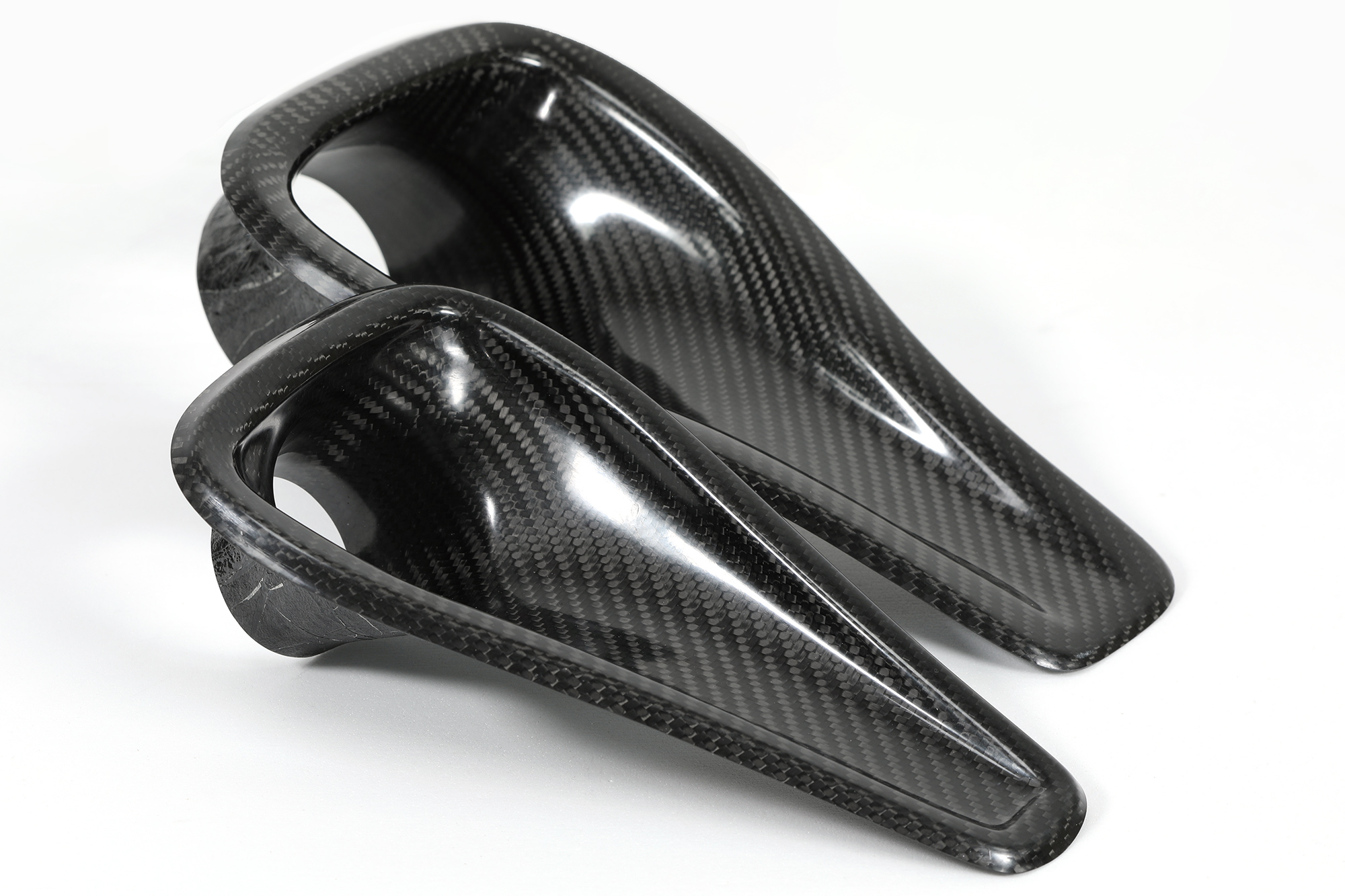

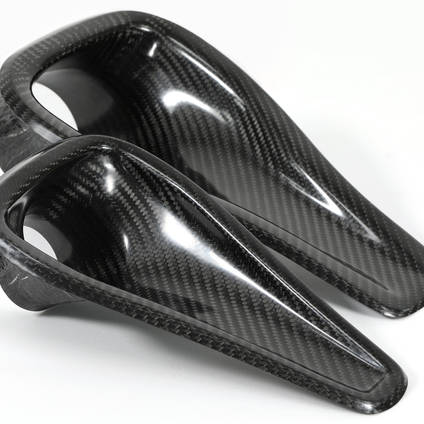

A smaller NACA duct or lower profile vent are also available.
NACA ducts were originally designed by NASA as a very low drag air-intake. When properly installed they allow air to be drawn in through vehicle body panels with minimal disturbance to the air flow. NACA ducts are usually used to provide air for engine, brake and cabin cooling and are commonly installed in bonnets and side panels for this purpose.
The Carbon Mods NACA Duct is designed to the an official NACA specification and is therefore guaranteed to match the performance characteristics of that duct design.
The duct is manufactured from 1mm of 100% pre-preg 2/2 twill 3k carbon fibre making it incredible strong and ultra-light weight. The duct has a high gloss finish on the visible surface.
Aesthetically, the duct displays the characteristic genuine carbon fibre weave on both surfaces that adds the ultimate in performance styling to your vehicle.
Installing the duct
The NACA duct can be installed in a variety of ways depending upon the application.
In all circumstances, the body panel will need to be cut to allow the duct to sit flush on panel surface. Download and print the template below to enable you to cut the correct shape in the body panel.
Download the installation template from the 'Downloads' tab for an accurate fitting drawing.
The duct accepts 75mm silicone duct hoses to deliver effective cooling to wherever it is needed. This larger NACA Duct's aperture makes it a suitable cold air feed to an engine induction system.
A smaller NACA duct or lower profile vent are also available.
Downloads (1)
| NACA Duct Size Template | 165 KB |
Specification
General Properties
| Gross Weight | 0.065 | kg |
|---|
The duct is 268mm long and 159mm wide at its largest on the flange. The duct is 85mm deep overall.
