Specification

Cured Mechanical Properties
ColourYellow
Weight and Dimensions
Width1000mm
Thickness0.27mm
Consolidated Thickness0.27mm
Areal Weight175g/m²
Product Data
FormatWoven Fabric
Fibre TypeAramid / Kevlar Fibre
UV ResistancePoor
BrandDupont
Picks6.7cm
Compatible With
Compatible WithEpoxyYes
Compatible WithPolyesterYes
Compatible WithVinylesterYes
Fabric Specification
Fibre SpecificsKevlar 49
WeaveSatin
Mechanical Properties
Ends6.7/cm
General Properties
Gross Weight0.175kg

Shipping Information

Restrictions

This product is not classed as dangerous goods for transport and can be shipped to all destinations without restriction.

Package Size

There are no package size restrictions or surcharges for this product.

Delivery Cost

To find the delivery cost of this item to your address, add it to your basket and then use the instant shipping calculator on the basket page.

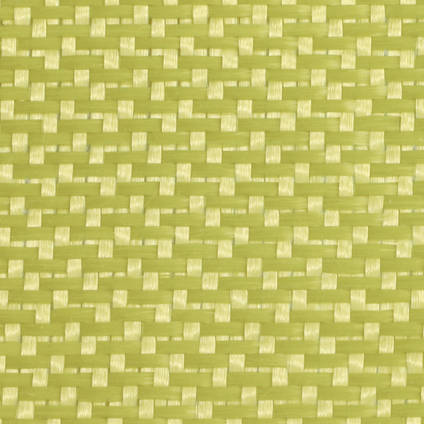

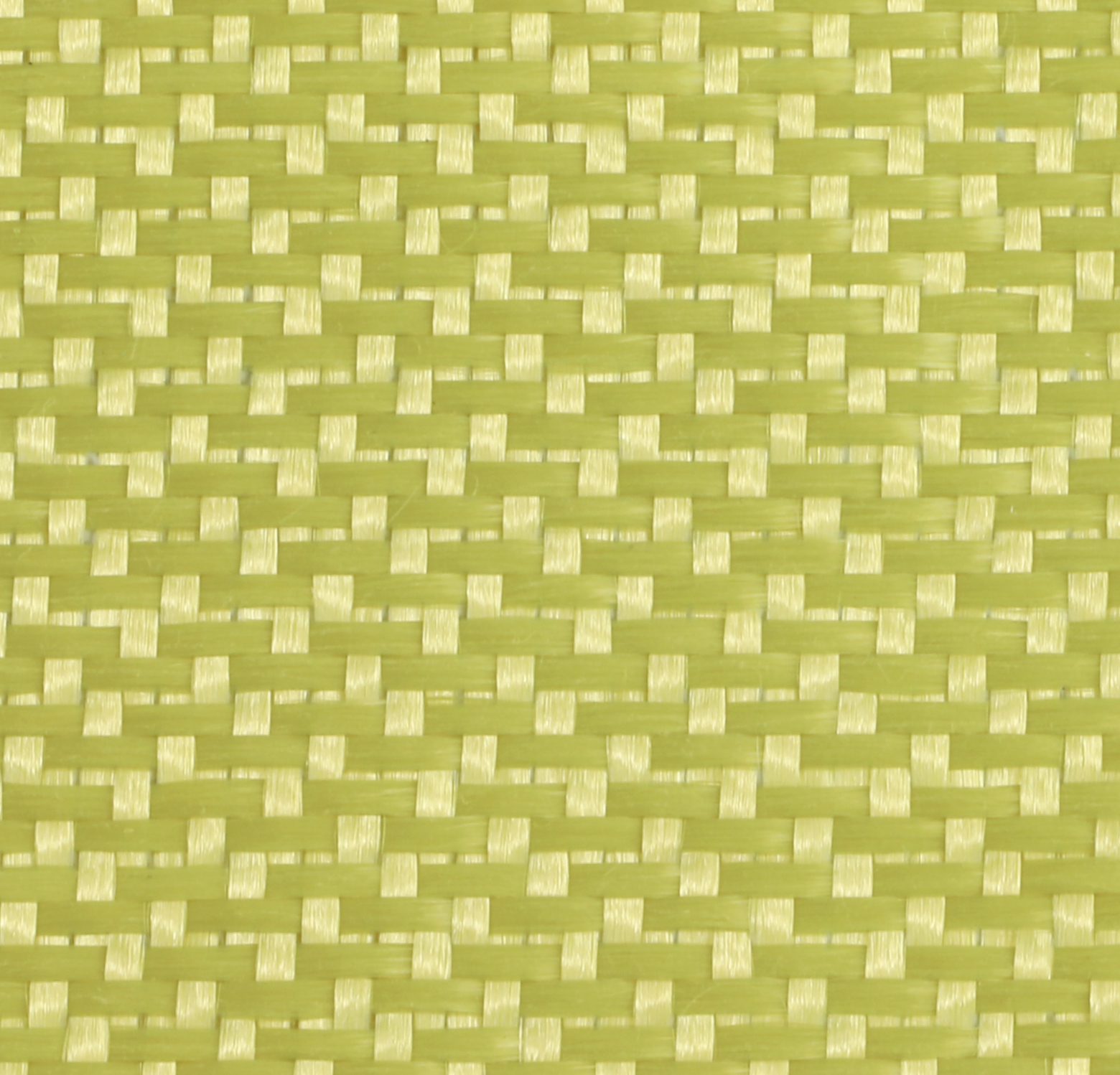

175g Satin Weave Kevlar Cloth Fabric 1000mm Wide

High quality 175gsm woven Kevlar® fabric reinforcement using genuine Dupont® Kevlar® yarn in a satin weave for good drapabily.

This high performance aramid cloth can be used on its own to make panels with maximum impact strength or used in combination to add impact strength to carbon or glass fibre laminates in applications such as motorsport panels, canoes, kayaks etc.

This fabric is 1m (1000mm) wide and sold by the linear metre.


AVAILABILITY:20 in stock available for immediate shipping


PRICE
€23.25ex. VAT
(€23.25 /SQM)
20 in stock available for immediate shipping
QTY
LINEAR METRES
LINEAR METRES

Trade discounts

0-45-910-4950-99100+
€23.25€20.95€19.75€18.60€15.70
We won’t be beaten on price!

If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.

This 175gsm satin weave Kevlar cloth can be used on its own or in conjunction with other reinforcement fabrics (such as carbon fibre) to achieve a very strong and impact resilient composite.

Kevlar® provides very high resistance to impact and abrasion and is much more resilient to fracture separation than other reinforcements (including carbon fibre).

Twill Kevlar® cloth can be laminated in just the same way as carbon fibre. It is suitable for use in wet-lay, vacuum bagging or resin infusion.

For maximum performance Kevlar® should always be laminated with Epoxy resin.

DuPont™ and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.

How to Buy

This roll is 1m (39") wide and the fabric is sold by the linear metre. The unit price shown is for 1 linear metre, volume discounts automatically apply for larger quantities of fabric.

Please purchase the number of linear metres you require. When purchasing multiple metres the fabric will be supplied in one continuous length on a roll.

Trade discounts

0-45-910-4950-99100+
€23.25€20.95€19.75€18.60€15.70
We won’t be beaten on price!

If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.

This 175gsm satin weave Kevlar cloth can be used on its own or in conjunction with other reinforcement fabrics (such as carbon fibre) to achieve a very strong and impact resilient composite.

Kevlar® provides very high resistance to impact and abrasion and is much more resilient to fracture separation than other reinforcements (including carbon fibre).

Twill Kevlar® cloth can be laminated in just the same way as carbon fibre. It is suitable for use in wet-lay, vacuum bagging or resin infusion.

For maximum performance Kevlar® should always be laminated with Epoxy resin.

DuPont™ and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.

How to Buy

This roll is 1m (39") wide and the fabric is sold by the linear metre. The unit price shown is for 1 linear metre, volume discounts automatically apply for larger quantities of fabric.

Please purchase the number of linear metres you require. When purchasing multiple metres the fabric will be supplied in one continuous length on a roll.

Specification

Cured Mechanical Properties
ColourYellow
Weight and Dimensions
Width1000mm
Thickness0.27mm
Consolidated Thickness0.27mm
Areal Weight175g/m²
Product Data
FormatWoven Fabric
Fibre TypeAramid / Kevlar Fibre
UV ResistancePoor
BrandDupont
Picks6.7cm
Compatible With
Compatible WithEpoxyYes
Compatible WithPolyesterYes
Compatible WithVinylesterYes
Fabric Specification
Fibre SpecificsKevlar 49
WeaveSatin
Mechanical Properties
Ends6.7/cm
General Properties
Gross Weight0.175kg
Can’t find the answer you’re looking for?Ask our technical team a question.

For wet-lay lamination you will use a bit more resin than the weight of the fabric. A typical fibre resin ratio for Aramid based fabrics is 45/55. For example, with a 300gsm cloth, for 1 square metre you will have 300g of fabric and thus will need 367g of resin to wet it out, plus a small amount of wastage for the brush and mixing pot.

You can purchase a sample of our fabrics here.

No. Our Kevlar Fabric is only available in the classic Kevlar yellow.

We do not currently stock any hybrid pre-pregs either as carbon-aramid mix or pure aramid

Aramid and Diolen laminates can be drilled into using a HSS drill bit designed for drilling steel. Start with a pilot hole and work up the diameter until the desired hole size is achieved. Any aramid/diolen fluff can be cut off with a sharp Stanley blade or scalpel.

No, this material wouldn’t be right. Normally for use in fabric garments, such as motorbike clothing, you need a specialist Aramid/Kevlar textile. Standard composites grade woven cloths are not designed for this application and are normally designed to be impregnated with resin to make a rigid composite material. The range of textiles we would recommend you consider are our Kevlar Protective Textiles which are all designed to be used in these kind of applications. Typically you would use the Loopbacked material as a general protective layer with high risk areas, such as knees, protected by the tougher Fleece.

ASK YOUR OWN QUESTION

Note: Your name will be abbreviated and your email address will only be used to email you the answer directly

Note: Your name will be abbreviated and your email address will only be used to email you the answer directly

Customer Product Reviews for 175g Satin Weave Kevlar Cloth Fabric 1000mm Wide

5/5 Average rating
20/7/2021
|
Nilanjan
|

Very nice items. International shipping was quick and trouble-free.
