Downloads (2)

Safety Data Sheet (SDS)510 KB
Technical DataSheet (TDS)327 KB

Specification

Pot Life and Cure Times
Working Time10 - 20mins
Handling Strength30 - 45mins
Working Strength1Hours
Full Cure Time2Days
Product Data
Hot Strength105°C
Maximum Gap Fill5mm
Mix Ratio2:1
Glass Transition Temperature50 - 60°C
ColourBlack
Chemistry / MaterialEpoxy
Shelf Life12Months
Cured Mechanical Properties
Shear Strength (Aluminium)22 - 28N/mm²
Shear Strength (Carbon Fibre)Substrate FailureN/mm²
Shear Strength (Stainless Steel)29 - 35N/mm²
Peel Strength (Aluminium)150 - 250N/25mm
Suitable Uses
Suitable UsesCompositesYes
Suitable UsesMetalsYes
Suitable UsesThermoset PlasticsYes
Suitable UsesWoodYes
Suitable UsesCeramicsYes
General Properties
Gross Weight0.073kg
BrandPermabond

Shipping Information

Restrictions

This product is not classed as dangerous goods for transport and can be shipped to all destinations without restriction.

Package Size

There are no package size restrictions or surcharges for this product.

Delivery Cost

To find the delivery cost of this item to your address, add it to your basket and then use the instant shipping calculator on the basket page.

ET5428-B Fast Composites Structural Epoxy Adhesive

One of the highest performing structural epoxy adhesives on the market for bonding carbon fibre and other composite materials to each other or to other substrates including metals such as aluminium, titanium and steel.

2:1 mix ratio. Black in colour, 10-20min working time, 1hr handling strength, full cure in 48hrs.

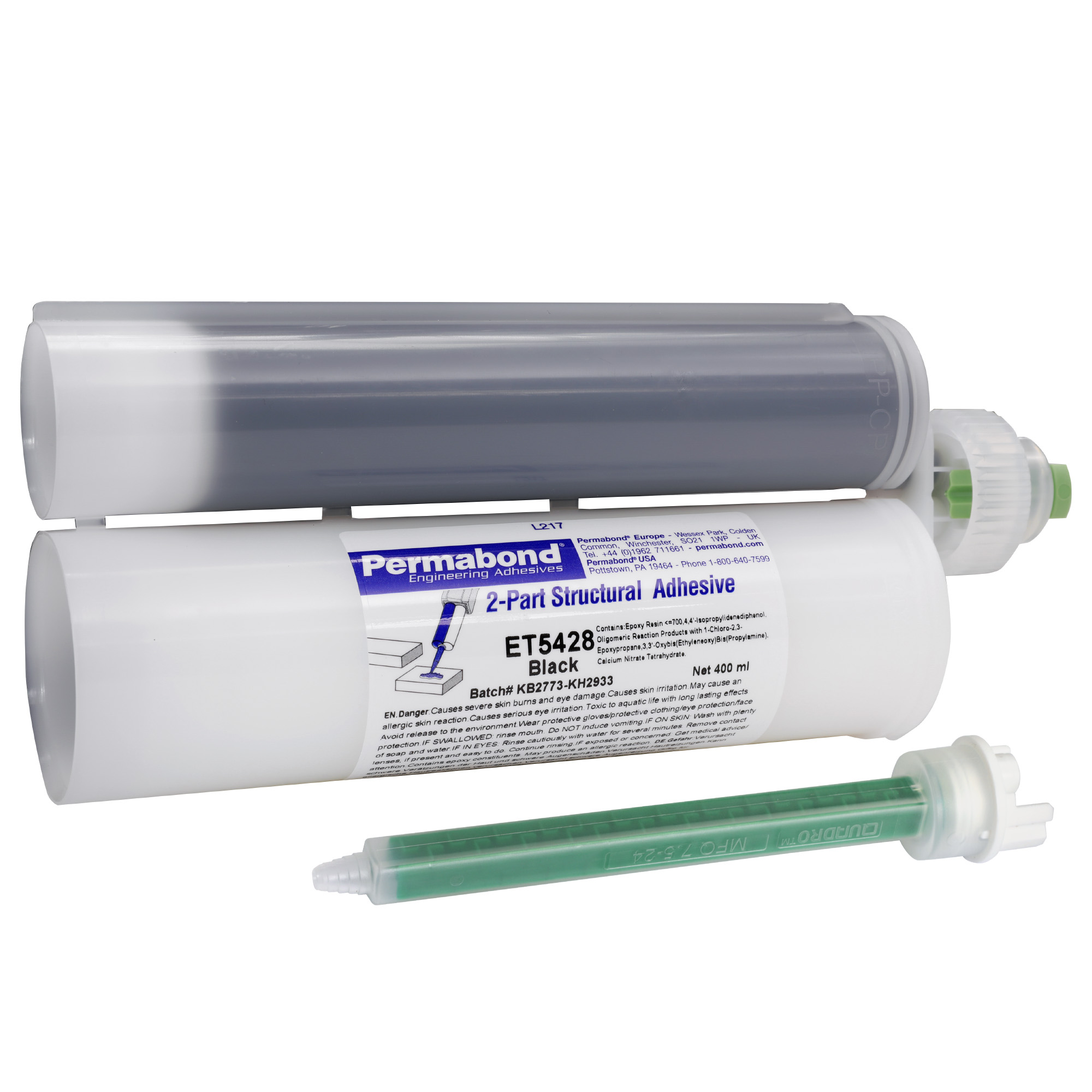

Available to buy in 50ml and 400ml cartridges (2:1 dispenser gun required). Includes one mixer nozzle.


PRODUCT VERSIONS

Pack Size

AVAILABILITY:More than 30 availablefor immediate shipping


Optional items

PRODUCT OPTIONS

PRICE
€21.00ex. VAT
More than 30 availablefor immediate shipping
QTY
EACH
EACH

Trade discounts

0-910+
€21.00€18.00
We won’t be beaten on price!

If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.

ET5428-B from Permabond is one of the highest performing two-part structural epoxy adhesives on the market for the bonding of composite materials, in particular carbon fibre, to each other and to other substrates including metals such as aluminium, titanium and steel.

In our own independent testing, ET5428 outperformed 3M’s highly regarded DP490 and our own VM100 MMA adhesives for carbon-to-carbon and carbon-to-aluminium bonding. Additionally, the toughened formula offers exceptional resistance to impact and vibration. As such, ET5428 and its slower ET5429 variant are the adhesives we recommend for applications requiring the highest possible bond strength and toughness for composite assemblies.

ET5428-B is charcoal black in colour for an inconspicuous bond-line when used with carbon fibre. The adhesive is relatively thixotropic, allowing it to accommodate gap-filling up to 5mm and application on vertical surfaces without slumping.

ET5428-B has good temperature resistance - still retaining 50% of its maximum strength at 105°C, as well as resistance to fuel and other chemicals.

 Main Characteristics

Working timeHandling StrengthWorking StrengthFull CureHot StrengthMix RatioGap Fill
10-20mins30-45min1hrs48 hrs105°C2:15mm

Pack Sizes and Dispensing

ET5428-B is available in 50ml or 400ml pack sizes which can be selected at the top of the page. Both pack sizes use 2:1 ratio cartridges and require a suitable cartridge dispenser gun.

The cartridges are intended to be used with static mixer nozzles which fully mix the two components as they pass through the nozzle. They are supplied with one nozzle but once used, adhesive cures in the nozzle and they need to be discarded. Additional nozzles are available to buy separately:

Trade discounts

0-910+
€21.00€18.00
We won’t be beaten on price!

If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.

ET5428-B from Permabond is one of the highest performing two-part structural epoxy adhesives on the market for the bonding of composite materials, in particular carbon fibre, to each other and to other substrates including metals such as aluminium, titanium and steel.

In our own independent testing, ET5428 outperformed 3M’s highly regarded DP490 and our own VM100 MMA adhesives for carbon-to-carbon and carbon-to-aluminium bonding. Additionally, the toughened formula offers exceptional resistance to impact and vibration. As such, ET5428 and its slower ET5429 variant are the adhesives we recommend for applications requiring the highest possible bond strength and toughness for composite assemblies.

ET5428-B is charcoal black in colour for an inconspicuous bond-line when used with carbon fibre. The adhesive is relatively thixotropic, allowing it to accommodate gap-filling up to 5mm and application on vertical surfaces without slumping.

ET5428-B has good temperature resistance - still retaining 50% of its maximum strength at 105°C, as well as resistance to fuel and other chemicals.

 Main Characteristics

Working timeHandling StrengthWorking StrengthFull CureHot StrengthMix RatioGap Fill
10-20mins30-45min1hrs48 hrs105°C2:15mm

Pack Sizes and Dispensing

ET5428-B is available in 50ml or 400ml pack sizes which can be selected at the top of the page. Both pack sizes use 2:1 ratio cartridges and require a suitable cartridge dispenser gun.

The cartridges are intended to be used with static mixer nozzles which fully mix the two components as they pass through the nozzle. They are supplied with one nozzle but once used, adhesive cures in the nozzle and they need to be discarded. Additional nozzles are available to buy separately:

Downloads (2)

Safety Data Sheet (SDS)510 KB
Technical DataSheet (TDS)327 KB

Specification

Pot Life and Cure Times
Working Time10 - 20mins
Handling Strength30 - 45mins
Working Strength1Hours
Full Cure Time2Days
Product Data
Hot Strength105°C
Maximum Gap Fill5mm
Mix Ratio2:1
Glass Transition Temperature50 - 60°C
ColourBlack
Chemistry / MaterialEpoxy
Shelf Life12Months
Cured Mechanical Properties
Shear Strength (Aluminium)22 - 28N/mm²
Shear Strength (Carbon Fibre)Substrate FailureN/mm²
Shear Strength (Stainless Steel)29 - 35N/mm²
Peel Strength (Aluminium)150 - 250N/25mm
Suitable Uses
Suitable UsesCompositesYes
Suitable UsesMetalsYes
Suitable UsesThermoset PlasticsYes
Suitable UsesWoodYes
Suitable UsesCeramicsYes
General Properties
Gross Weight0.073kg
BrandPermabond
Can’t find the answer you’re looking for?Ask our technical team a question.

There is no practical minimum bond thickness for this adhesive although you do need to ensure that *some* adhesive is present, which is why glass spheres are sometimes used to prevent the adhesive from being scraped off completely. Essentially though, as long as an even thin film is applied the bond strength between the two materials will be good.

Yes, certainly. In fact the easiest way to do this is to simply leave the static mixer nozzle in place after you use the adhesive. The adhesive that's in the nozzle will have been mixed and so will cure but the glue at the start of the nozzle will be unmixed and not cured meaning the nozzle will twist off perfectly and the glue inside will have been protected from the atmosphere and so will be perfectly preserved ready for use.

A typical application of the adhesive is approximately a 0.5mm thick layer. At this thickness, one 50ml cartridge would cover an area 30cm by 30cm; a 400ml cartridge would cover an area approximately 90cm by 90cm.

For best results when gluing over a large surface area, use a spreader to help ensure the adhesive is laid down in an even layer.
