This is a chemical product. Before storage or use you must download and read the accompanying safety and technical datasheets.
Safety Datasheet (SDS) | ||
Technical Datasheet (TDS) |
Colour | Black | |
---|---|---|
Pot Life (Typical) | 7 | mins |
Chemistry / Material | Acrylic | |
Viscosity | 135000 | mPa.s |
Max Service Temp | 120 | °C |
---|---|---|
Flexibility | Hard / Rigid | |
Hardness | 75 (Hard) | Shore D |
Gross Weight | 0.048 | kg |
---|
This product is classed as dangerous goods for transport.
It can be shipped to all mainland EU countries, Ireland, Balearic Islands, Corsica, Sicily and Sardinia.
Unfortunately, for the time being we are unable to ship dangerous goods to Cyprus, Malta, the Canary Islands, Ceuta, Melilla, Jan Mayan and Svalbard.
For a full information regarding the shipment of dangerous goods, see our delivery information page.
There are no package size restrictions or surcharges for this product.
To find the delivery cost of this item to your address, add it to your basket and then use the instant shipping calculator on the basket page.
VuduGlu VM100 really is witchcraft of the adhesive world! This fast-curing, high-performance MMA (methyl methacrylate) adhesive offers incredible bond strength to a wide variety of substrates, especially composite laminates, high flexural strength and a wide service temperature.
VM100 is our 'go-to' choice for bonding/assembly of carbon fibre parts and the bonding of metal inserts to carbon fibre or fibreglass laminates.
Available to buy online in a 25ml syringe, 50ml twin cartridge or 400ml twin cartridge.
AVAILABILITY:Out of Stock
New stock is on its way. If you order this product, your whole order will be held and then dispatched to you as soon as this product is back in stock.
New stock is on its way. If you order this product, your whole order will be held and then dispatched to you as soon as this product is back in stock.
Trade discounts
0-11 | 12+ |
---|---|
€5.50 | €5.25 |
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
VuduGlu™ VM100 Black is a high strength, toughened methyl methacrylate structural adhesive or MMA Adhesive offering unbeatable bonding of composite materials and bonding of metal fasteners and substrates to composite materials. VM100 Black is specially formulated to offer the very best performance for demanding structural bonding and is highly recommended for carbon-to-carbon and carbon-to-metal assembly. The adhesive is black in colour and therefore leaves a discreet bond-line when bonding carbon fibre or other dark materials.
As well as carbon fibre/epoxy laminates, VM100 Black is also ideal for bonding a range of glass fibre (GRP) laminates made using a range of resin systems including epoxy, polyester and vinylester and also demanding metal-to-metal bonding.
VuduGlu™ VM100 Black's revolutionary adhesion system enables the adhesive to achieve class-leading bond strength onto a wide range of substrates without the need for surface primers or conditioners resulting in an adhesive with both very high mechanical strength and impact resistance which is also fast and easy to use too.
Typical Uses
How to Buy
VM100 is a professional adhesive and is therefore sold in the standard 50ml and 400ml twin tubes. It is also available in a handy 25ml 'syringe dispenser'.
Choose the pack size you require from the drop-down list at the top of the page.
25ml Syringe
The handy 25ml syringe dispenser pack does not require a dispenser gun. The syringe uses our 50ml static mixer nozzles and is supplied complete with 1 nozzle. Click here to buy more compatible nozzles.
50ml Twin Tube Cartridge
The 50ml twin tube cartridge requires a standard type 50ml Twin Tube Dispenser Gun.
The 50ml cartridge uses 50ml static mixer nozzles and is supplied complete with 1 nozzle. Click here to buy more compatible nozzles.

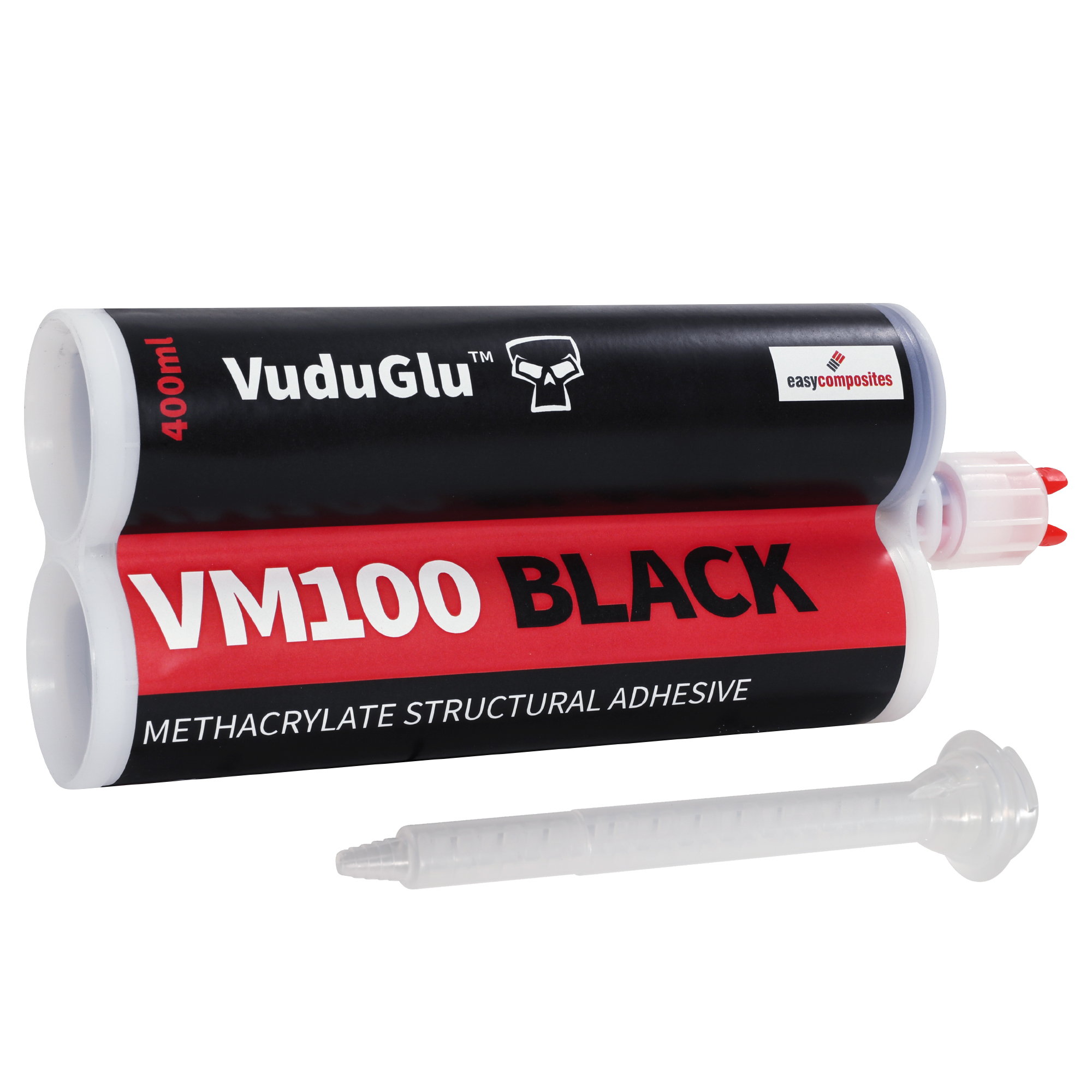

400ml Twin Tube Cartridge
The 400ml size twin tube is intended for production use and requires a 400ml Twin Tube Cartridge Gun Dispenser.
The 400ml VuduGlu VM100 pack uses a 'Type 3' static mixer nozzle. 1 nozzle is included with the cartridge. Click here to by more compatible nozzles.
Further Information
Instructions for Use
Shelf Life & Storage
For maximum shelf-life, VM100 Black should be stored unopened in a dry, dark location. MMA type adhesives are very temperature sensitive and will degrade in higher temperatures. The ideal temperature to maximise shelf life of the VM100 is to store it between 6°C and 12°C. Stored in this way, the adhesive has a shelf life of 12 months from the date of manufacture. If cool conditions are not available, then the shelf life will be as in the following table:
Storage Temperature °C | Shelf Life |
---|---|
15 | 12 Months |
20 | 11 Months |
28 | 45 Days |
35 | 20 Days |
45 | 5 Days |
82 | 6 Hours |
Trade discounts
0-11 | 12+ |
---|---|
€5.50 | €5.25 |
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
VuduGlu™ VM100 Black is a high strength, toughened methyl methacrylate structural adhesive or MMA Adhesive offering unbeatable bonding of composite materials and bonding of metal fasteners and substrates to composite materials. VM100 Black is specially formulated to offer the very best performance for demanding structural bonding and is highly recommended for carbon-to-carbon and carbon-to-metal assembly. The adhesive is black in colour and therefore leaves a discreet bond-line when bonding carbon fibre or other dark materials.
As well as carbon fibre/epoxy laminates, VM100 Black is also ideal for bonding a range of glass fibre (GRP) laminates made using a range of resin systems including epoxy, polyester and vinylester and also demanding metal-to-metal bonding.
VuduGlu™ VM100 Black's revolutionary adhesion system enables the adhesive to achieve class-leading bond strength onto a wide range of substrates without the need for surface primers or conditioners resulting in an adhesive with both very high mechanical strength and impact resistance which is also fast and easy to use too.
Typical Uses
How to Buy
VM100 is a professional adhesive and is therefore sold in the standard 50ml and 400ml twin tubes. It is also available in a handy 25ml 'syringe dispenser'.
Choose the pack size you require from the drop-down list at the top of the page.
25ml Syringe
The handy 25ml syringe dispenser pack does not require a dispenser gun. The syringe uses our 50ml static mixer nozzles and is supplied complete with 1 nozzle. Click here to buy more compatible nozzles.
50ml Twin Tube Cartridge
The 50ml twin tube cartridge requires a standard type 50ml Twin Tube Dispenser Gun.
The 50ml cartridge uses 50ml static mixer nozzles and is supplied complete with 1 nozzle. Click here to buy more compatible nozzles.
400ml Twin Tube Cartridge
The 400ml size twin tube is intended for production use and requires a 400ml Twin Tube Cartridge Gun Dispenser.
The 400ml VuduGlu VM100 pack uses a 'Type 3' static mixer nozzle. 1 nozzle is included with the cartridge. Click here to by more compatible nozzles.
Further Information
Instructions for Use
Shelf Life & Storage
For maximum shelf-life, VM100 Black should be stored unopened in a dry, dark location. MMA type adhesives are very temperature sensitive and will degrade in higher temperatures. The ideal temperature to maximise shelf life of the VM100 is to store it between 6°C and 12°C. Stored in this way, the adhesive has a shelf life of 12 months from the date of manufacture. If cool conditions are not available, then the shelf life will be as in the following table:
Storage Temperature °C | Shelf Life |
---|---|
15 | 12 Months |
20 | 11 Months |
28 | 45 Days |
35 | 20 Days |
45 | 5 Days |
82 | 6 Hours |
Colour | Black | |
---|---|---|
Pot Life (Typical) | 7 | mins |
Chemistry / Material | Acrylic | |
Viscosity | 135000 | mPa.s |
Max Service Temp | 120 | °C |
---|---|---|
Flexibility | Hard / Rigid | |
Hardness | 75 (Hard) | Shore D |
Gross Weight | 0.048 | kg |
---|
There is no practical minimum bond thickness for this adhesive although you do need to ensure that *some* adhesive is present, which is why glass spheres are sometimes used to prevent the adhesive from being scraped off completely. Essentially though, as long as an even thin film is applied the bond strength between the two materials will be good.
Yes, certainly. In fact the easiest way to do this is to simply leave the static mixer nozzle in place after you use the adhesive. The adhesive that's in the nozzle will have been mixed and so will cure but the glue at the start of the nozzle will be unmixed and not cured meaning the nozzle will twist off perfectly and the glue inside will have been protected from the atmosphere and so will be perfectly preserved ready for use.
A typical application of the adhesive is approximately a 0.5mm thick layer. At this thickness, one 50ml cartridge would cover an area 30cm by 30cm; a 400ml cartridge would cover an area approximately 90cm by 90cm.
For best results when gluing over a large surface area, use a spreader to help ensure the adhesive is laid down in an even layer.
Nylon, in common with many inert thermoplastics, can be difficult to bond to, even with the modern generation of structural adhesives. However, it is possible to bond with VM100 if you “flame treat” the nylon just prior to adhesive application. The flame treatment helps the adhesive get the best bond possible to the nylon
If you're using the VM100 as the adhesive, your best best would probably be ABS as it can be bonded with the VM100 and should stand up to the temperatures that you might experience in your car.
No, unfortunately VM100 Black is not designed to stick any rubber or silicone materials. Silicone is particular can be a very difficult material to bond to and will almost always require a specialist silicone adhesive.
Yes, our VM100B is highly UV resistant.
The VM100 makes an excellent adhesive for bonding tabs on test tokens. In our own laboratory we also use ET515 Semi Flexible 15min Professional Epoxy Adhesive for some tests where more flexural strength is required.
Plexus is an adhesive manufacturer who are best know for their methacrylate adhesives. VuduGlu VM100 is also a methacrylate adhesive (an MMA) which is similar to some Plexus MMAs although it is not manufactured by Plexus and does not directly match any of their product variants.
VM100 Black will bond reasonably well to ABS. It would be important to key the surface and give it a thorough clean before bonding.
Yes, VM100 Black is a very diverse adhesive and can bond a variety of materials. Aluminium to aluminium with VM100 will give a good strong bond. Both surfaces will need a good key and a thorough clean to achieve the best results.
VM100 is not electrically conductive in its natural form. Like many adhesives and resins, conductivity can be very fractionally improved through the addition of metallic particles and/or carbon fibres, however the resistance is extremely high in these circumstances.
Once fully cured you will have no problems sanding and shaping the cured adhesive as necessary.
Yes, VM100 Black would make a good adhesive for this application. The bond strength to aluminium and carbon fibre would both be excellent, subject to appropriate preparation (de-greasing, keying).
We would recommend our VM100 Black 10min Methacrylate Adhesive; it has excellent bond strength between aluminium and carbon fibre.
The cap on the VM100 is removed by initially snapping the cap off leaving the exposed nozzle.
Once you have finished with using the glue, the snapped off cap is turned upside down and will fit over the glue tube by pressing on and rotating 90 degrees clockwise to seal.
It is a perfect product for carbon fiber to carbon fiber bond. It is also OK to fill in some small imperfections onto the laminates, it's already black. I do not recommand it in case there a too much parts involved in the bonding operation. It fast curing properties can be a real plus, but if there is a lot of parts to bond at the same time, then you may rush to have everything positionned and aligned
Works fantastic to glue aluminium to carbon fibre. A small amount makes a strong connection. The mixing tubes are a nice addition which makes mixing easy. Be prepared with all your parts cleaned and ready to glue before mixing as it cures fast. great product.
"VuduGlu VM100 really is witchcraft of the adhesive world!" Never a truer word was spoken! I used a 25ml syringe to re-set a threaded metal socket into a carbon-framed bike after unsuccessfully using some other products - with complete success. Be aware that if you're not going to be using a whole tube at a time you'll need to order a disposable mixing nozzle for each future application. Ask me how I know that ;o)
