Downloads (3)

Safety Datasheet (SDS)2 MB
Dutch Safety DataSheet2 MB
Technical Datasheet (TDS)718 KB

Specification

Product Data
ColourBrown
Chemistry / MaterialPolyurethane
Viscosity545mPa.s
UV ResistancePoor
BrandEasy Composites
Density1.025g/cm³
Cured Mechanical Properties
Max Service Temp80°C
Hardness60 (Flexible)Shore A
Hardness0Shore D
FlexibilityFlexible
Tensile Strength3.4 - 3.8MPa
Elongation at Break200 - 260%
Tg Onset (DMA)80°C
Pot Life and Cure Times
Pot Life (Typical)10mins
Initial Cure Time1.5Hrs
Full Cure Time7Days
General Properties
Gross Weight1.2kg

Shipping Information

Restrictions

This product is not classed as dangerous goods for transport and can be shipped to all destinations without restriction.

Package Size

There are no package size restrictions or surcharges for this product.

Delivery Cost

To find the delivery cost of this item to your address, add it to your basket and then use the instant shipping calculator on the basket page.

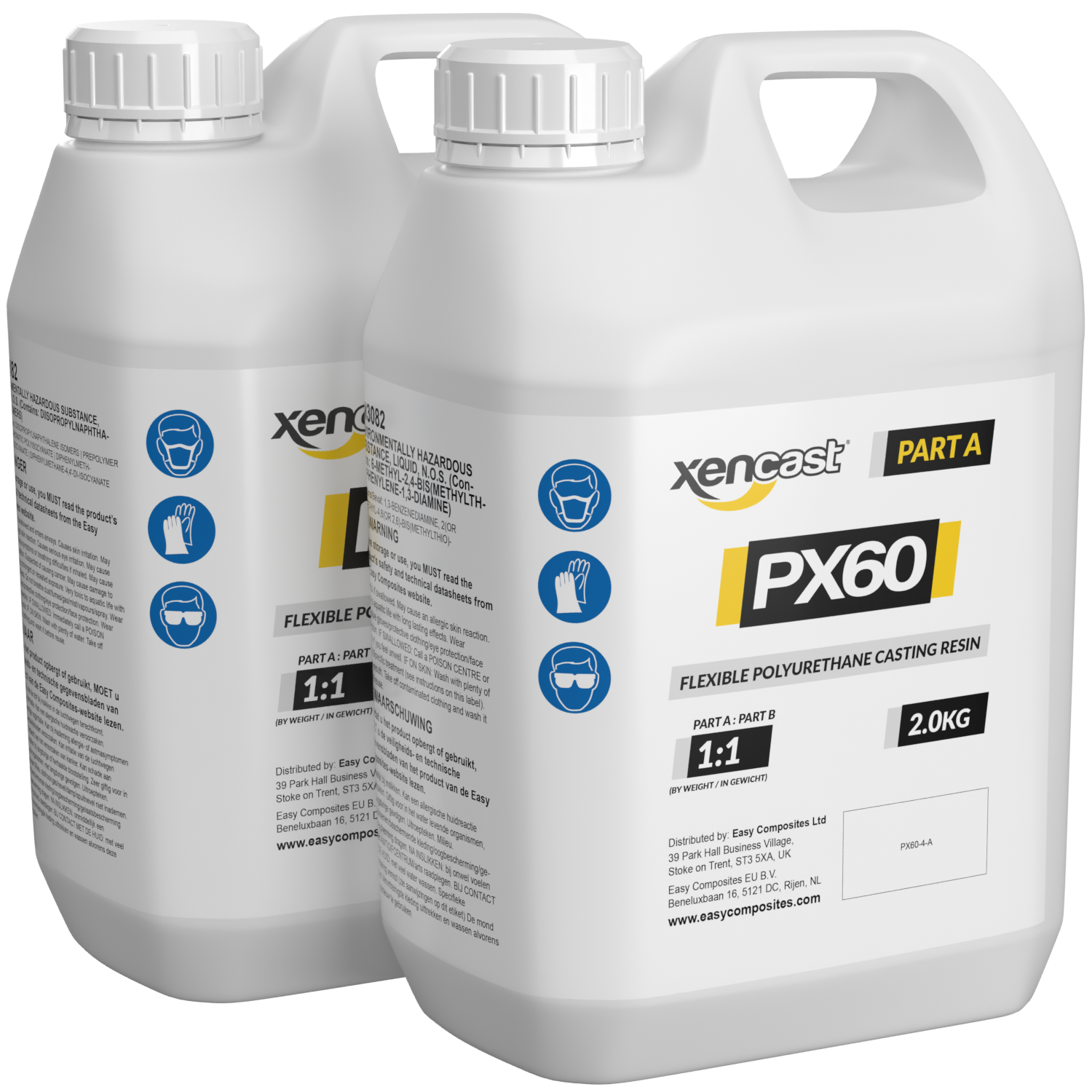

Xencast PX60 Medium Flexible Polyurethane Resin

Xencast® PX60 is a medium flexible 60 Shore A hardness polyurethane (PU) rubber with superior tear strength and resilience. It is recommended for casting grips, handles, floor mats, props and training weapons, gaskets and seals. Also suitable for making flexible concrete casting moulds.

PX60 cures to a translucent amber appearance but can be pigmented to any colour. Degassing is not necessary but will improve performance.

Sold as a kit (Part A and Part B). Available to buy online in 1kg, 4kg and 10kg kits.


PRODUCT VERSIONS

Pack Size

AVAILABILITY:9 in stock available for immediate shipping


PRICE
€25.00ex. VAT
(€25.00 /KG)
9 in stock available for immediate shipping
QTY
KITS
KITS
We won’t be beaten on price!

If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.

Xencast® PX60 is an industry leading flexible polyurethane rubber which cures to a medium 60 Shore A hardness whilst retaining excellent tear strength and resilience. Xencast® PX60 is ideal for product applications requiring a flexible yet durable material including grip handles, tablet protectors, floor mats, soft wheels, props and training weapons. PX60 can also be used to produce durable, flexible moulds for concrete casting.

Utilising the latest polymer technology, Xencast® PX60 is able to create flexible PU rubber parts with superior tear strength, abrasion and wear resistance and chemical tolerance.

PX60's highly translucent formulation means that it accepts pigments very well resulting in strong vibrant colours from reduced pigment concentrations. This translucency also makes it possible to use translucent tinting pigments to produce semi-transparent coloured castings which can even be illuminated.

Typical Uses

  • Grips and handles
  • Phone/tablet protectors
  • Floor mats
  • Soft wheels and tyres
  • Training weapons and props
  • Gaskets and seals
  • Concrete casting moulds

In conjunction with a suitable mould, Xencast® PX60 can be used to produce flexible rubber like components such as grips, handles, floor mats, phone and tablet protectors, soft wheels and shock mountings.

Xencast® PX60's abrasion resistance, tear strength and resilience also make it ideally suitable for producing durable moulds for concrete casting.

Advantages

  • Medium flexibility, 60 shore flexible polyurethane.
  • Excellent abrasion resistance.
  • High tear strength.
  • Dimensional accuracy and fine detail reproduction.
  • Easily pigmented (translucent).
  • Low viscosity.
  • Easy 1:1 mix ratio.

Further Information

Compatibility Information - Dos and Don'ts

Although by no means an exhaustive list, the mould materials, pigments and additives listed below have all been tested and are known to work well with Xencast® PX60.

Please download the technical datasheet for full details.

Compatible Moulds

  • Condensation/tin cure RTV silicone rubber
  • Addition/platinum cure RTV silicone rubber
  • Polypropylene and polyethylene mould 'trays'

Compatible Pigments

  • Polyurethane Colour Pigment (for vivid opaque colours)
  • Translucent Tinting Pigment (for less vivid opaque colours)

Compatible Fillers

  • Filler powders are not recommended

Xencast® PX60 should not be cast into latex rubber moulds. It should not be cast in contact with moisture or moisture harbouring materials such as wood.

Key Processing Information

  • Ease of Use: Suitable for professional and hobby use (follow SDS advice).
  • Odour: PX60 is almost odourless.
  • Appearance: PX60 is a translucent light amber colour.
  • Safety Precautions: Wear gloves and goggles and work in a well ventilated area. Always read the SDS before use.
  • Ambient Conditions: Can be used from 10 to 30°C although pot-life and cure time will be affected significantly. For small or thin-section castings an ambient of 20-25°C is required.
  • Degassing: Although not essential, vacuum degassing PX60 will eliminate air bubbles and ensure maximum tear resistance.
  • Mix Ratio: Mix 'Part A and 'Part B' 1:1 by weight. Use digital scales.
  • Mixing: Mix thoroughly by hand for at around 2-3 minutes.
  • Pot-Life: 10 minutes. Be sure to pour your casting(s) before this time.
  • Thin Sections: Thin sections will cure more slowly than thick sections. Make sure you allow enough time for thin sections to cure.
  • Cure Time/Demould: Larger castings will heat up more and cure quicker than small castings. Typical demould time is 1-2hrs at 25°C however full cure will not be reached for a further 7 days.
  • Shelf Life: The shelf life is 6 months from date of manufacture.
  • Pigments and Fillers: Pigment using polyurethane colour pigments or translucent tinting pigments.

Xencast® PX60 is an industry leading flexible polyurethane rubber which cures to a medium 60 Shore A hardness whilst retaining excellent tear strength and resilience. Xencast® PX60 is ideal for product applications requiring a flexible yet durable material including grip handles, tablet protectors, floor mats, soft wheels, props and training weapons. PX60 can also be used to produce durable, flexible moulds for concrete casting.

Utilising the latest polymer technology, Xencast® PX60 is able to create flexible PU rubber parts with superior tear strength, abrasion and wear resistance and chemical tolerance.

PX60's highly translucent formulation means that it accepts pigments very well resulting in strong vibrant colours from reduced pigment concentrations. This translucency also makes it possible to use translucent tinting pigments to produce semi-transparent coloured castings which can even be illuminated.

Typical Uses

  • Grips and handles
  • Phone/tablet protectors
  • Floor mats
  • Soft wheels and tyres
  • Training weapons and props
  • Gaskets and seals
  • Concrete casting moulds

In conjunction with a suitable mould, Xencast® PX60 can be used to produce flexible rubber like components such as grips, handles, floor mats, phone and tablet protectors, soft wheels and shock mountings.

Xencast® PX60's abrasion resistance, tear strength and resilience also make it ideally suitable for producing durable moulds for concrete casting.

Advantages

  • Medium flexibility, 60 shore flexible polyurethane.
  • Excellent abrasion resistance.
  • High tear strength.
  • Dimensional accuracy and fine detail reproduction.
  • Easily pigmented (translucent).
  • Low viscosity.
  • Easy 1:1 mix ratio.

Further Information

Compatibility Information - Dos and Don'ts

Although by no means an exhaustive list, the mould materials, pigments and additives listed below have all been tested and are known to work well with Xencast® PX60.

Please download the technical datasheet for full details.

Compatible Moulds

  • Condensation/tin cure RTV silicone rubber
  • Addition/platinum cure RTV silicone rubber
  • Polypropylene and polyethylene mould 'trays'

Compatible Pigments

  • Polyurethane Colour Pigment (for vivid opaque colours)
  • Translucent Tinting Pigment (for less vivid opaque colours)

Compatible Fillers

  • Filler powders are not recommended

Xencast® PX60 should not be cast into latex rubber moulds. It should not be cast in contact with moisture or moisture harbouring materials such as wood.

Key Processing Information

  • Ease of Use: Suitable for professional and hobby use (follow SDS advice).
  • Odour: PX60 is almost odourless.
  • Appearance: PX60 is a translucent light amber colour.
  • Safety Precautions: Wear gloves and goggles and work in a well ventilated area. Always read the SDS before use.
  • Ambient Conditions: Can be used from 10 to 30°C although pot-life and cure time will be affected significantly. For small or thin-section castings an ambient of 20-25°C is required.
  • Degassing: Although not essential, vacuum degassing PX60 will eliminate air bubbles and ensure maximum tear resistance.
  • Mix Ratio: Mix 'Part A and 'Part B' 1:1 by weight. Use digital scales.
  • Mixing: Mix thoroughly by hand for at around 2-3 minutes.
  • Pot-Life: 10 minutes. Be sure to pour your casting(s) before this time.
  • Thin Sections: Thin sections will cure more slowly than thick sections. Make sure you allow enough time for thin sections to cure.
  • Cure Time/Demould: Larger castings will heat up more and cure quicker than small castings. Typical demould time is 1-2hrs at 25°C however full cure will not be reached for a further 7 days.
  • Shelf Life: The shelf life is 6 months from date of manufacture.
  • Pigments and Fillers: Pigment using polyurethane colour pigments or translucent tinting pigments.

Downloads (3)

Safety Datasheet (SDS)2 MB
Dutch Safety DataSheet2 MB
Technical Datasheet (TDS)718 KB

Specification

Product Data
ColourBrown
Chemistry / MaterialPolyurethane
Viscosity545mPa.s
UV ResistancePoor
BrandEasy Composites
Density1.025g/cm³
Cured Mechanical Properties
Max Service Temp80°C
Hardness60 (Flexible)Shore A
Hardness0Shore D
FlexibilityFlexible
Tensile Strength3.4 - 3.8MPa
Elongation at Break200 - 260%
Tg Onset (DMA)80°C
Pot Life and Cure Times
Pot Life (Typical)10mins
Initial Cure Time1.5Hrs
Full Cure Time7Days
General Properties
Gross Weight1.2kg
Can’t find the answer you’re looking for?Ask our technical team a question.

Assuming your skateboard wheels are perfect cylinders then the volume is quite easy to calculate using the formula Πr²h which in your case r = 25mm and h = 30mm giving a volume of 58.9 cm³. For Example, the density of PX90 is fractionally over 1g/cm³ which means you need 58.9g of resin per wheel or 235.62g for a set of 4. However check the density of the specific resin you are using in all cases so you multiply by the right figure to get an accurate weight.

However, most skateboard wheels have cut outs or hollows so the reality is you will use less resin. Calculating the volume in that case is a little more complicated as you need to calculate the volume of the cut outs then take it from the figures above to give the actual volume.

...the shore should be around 70 ish. Also, how well does it bond to metal, and can I treat the metal with a product to increase the adhesion?



Most commonly motor mounts (engine bushes) are made using something more like an 80 or 90 shore resin. In fact our PX90 has been used by a number of customers to create engine mounts.



If you're confident that you do need a 70 shore for your application then our closest shore hardness would be our PX60 but my opinion is that this would be too soft for most typical engine mount applications.



As for the bond to metal, we don't really have, and you shouldn't really need, an adhesion promoter for PU to aluminium - they should bond well. As usual, just make sure the surface is clean, completely grease-free (using acetone) and lightly keyed (using abrasive paper).

Glass Bubbles can be added to most resins to reduce the density of the cured material. However, bear in mind that they will reduce the clarity of the GlassCast resin, making it more of a translucent 'milky' appearance rather than transparent.

Yes we have a range of specific PU pigments which are compatible with the PX range of resins https://www.easycomposites.co.uk/polyurethane-solid-colour-pigment

Our tinting pigments are also compatible with PU resins https://www.easycomposites.co.uk/translucent-tinting-pigment

You can certainly use this resin without degassing however we do recommend degassing to ensure maximum performance of the finished product by removing all traces of air. Bubbles can form weak points in the casting which promote tearing and ultimately early failure.

Due to the short pot life, if you do choose to degas the resin then we would recommend a degassing system that uses a high capacity pump so that there is enough time to degas within the resins pot-life. Our Professional Vacuum Degassing System - EC20-1 Vacuum Pump is the ideal one stop solution for degassing highly reactive resins with short pot-lives.

Polyurethane based resins will bond to a keyed and degreased epoxy surface so the resin will bond and act as a rubber-like surface on an epoxy part however the suitability for your application may be affected by environmental conditions such as weather and sunlight exposure and the appearance you're trying to achieve. For example, the resin would not be suitable as a 'clear' coating to a carbon fibre part because the PX60 is amber in colour and also will discolour with exposure to UV light.

No, there are currently no additives designed to help improve the rubber's UV performance however, adding bold/dark coloured pigments (such as black) can help significantly by reducing the exposure of the resin to the UV.

p>No, PX60 Flexible PU has not been tested or approved specifically for food use.

Yes the PX60 will cast well and release well from the CS25 Condensation Cure Silicone as found in our XenCast Resin Casting Starter Kit

No. Our PX series of polyurethane resins are not designed to be UV stable and as such will yellow under prolonged UV exposure, especially in strong sunlight.

p>Technically it would be possible to add ATH to the PX60 however this would be a rather strange (and possible undesirable) combination of a flexible resin with an inert mineral filler. The problem is likely to be the effect on the tear strength of the finished component because a flexible resin with an compressible filler powder in would be more likely to tear when flexed.

...Could this be used to create rubber intensifiers for moulding carbon prepreg parts in an autoclave cure? If release coated I assume it will not stick. But would it inhibit curing of the epoxy at all? It would need to be removed (not re used) after cure.

Polyurethane is known to have quite a strange inhibiting effect on the cure of epoxy when both are at elevated temperature (this effect is seen clearly if you've ever tried using PU tooling board to make a prepreg carbon fibre part) and therefore I would be at least wary of this combination. I cannot say for sure it would inhibit the cure of the epoxy but it does have all ingredients of a potential problem (uncured epoxy in contact with polyurethane and elevated temperature).

A more reliable alternative would be our AS40 Addition Cure Silicone Rubber. Silicone is a much more common material to use as an intensifier in prepreg laminating and our AS40 product would probably be about right in terms of shore hardness. Silicone also has the great advantage (in this application) of having a very high CTE which makes it expand at elevated temperatures, thereby increasing the intensifying effect. Epoxy will also naturally release from silicone.
